Steering System: Pump: Removal

  1. Remove negative (-) battery cable from battery and isolate cable.

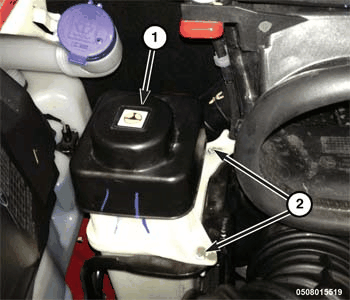

    GC0160291Courtesy of CHRYSLER GROUP, LLC
  2. Remove cap (1) from power steering fluid reservoir.
  3. Using a siphon pump, remove as much power steering fluid as possible from power steering fluid reservoir.
  4. Raise and support vehicle Refer to HOISTING, STANDARD PROCEDURE .
    GC0160740Courtesy of CHRYSLER GROUP, LLC
  5. Remove the power steering pulley Refer to PULLEY, POWER STEERING PUMP, REMOVAL .
  6. Remove supply hose (3) from power steering pump.
  7. Remove power steering pump pressure hose fitting (4).
    GC0160362Courtesy of CHRYSLER GROUP, LLC
  8. Remove three pump mounting bolts and spacers.
  9. Remove pump (2).
