P1794-Speed Sensor Ground Error: Notes

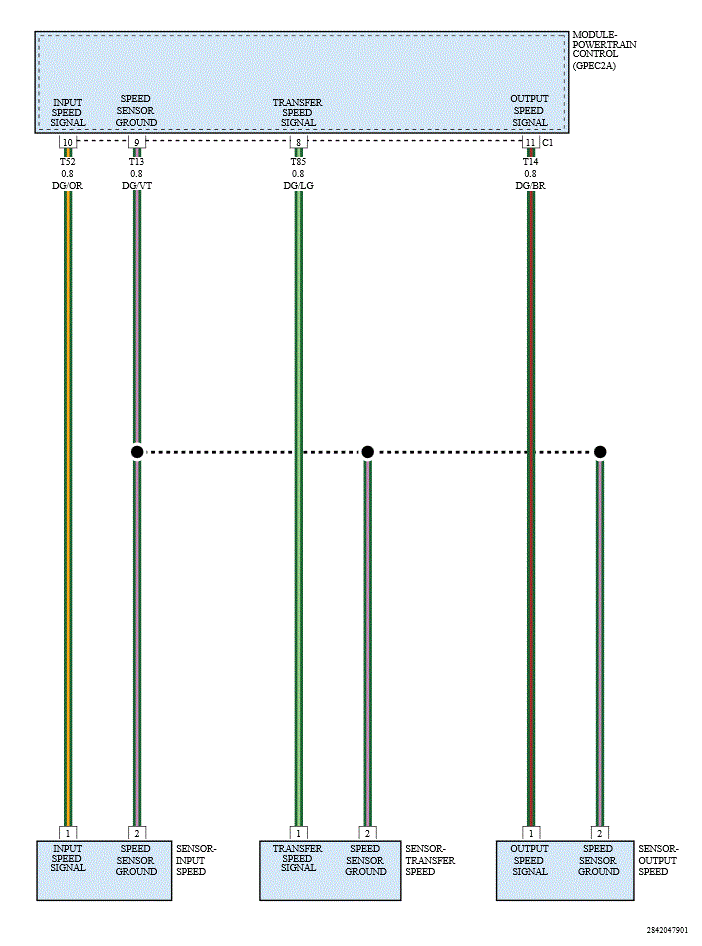

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

GC0168601

Courtesy of CHRYSLER GROUP, LLC
