Charging System (Service Information): Generator: Installation: 3.6L

Courtesy of CHRYSLER GROUP, LLC

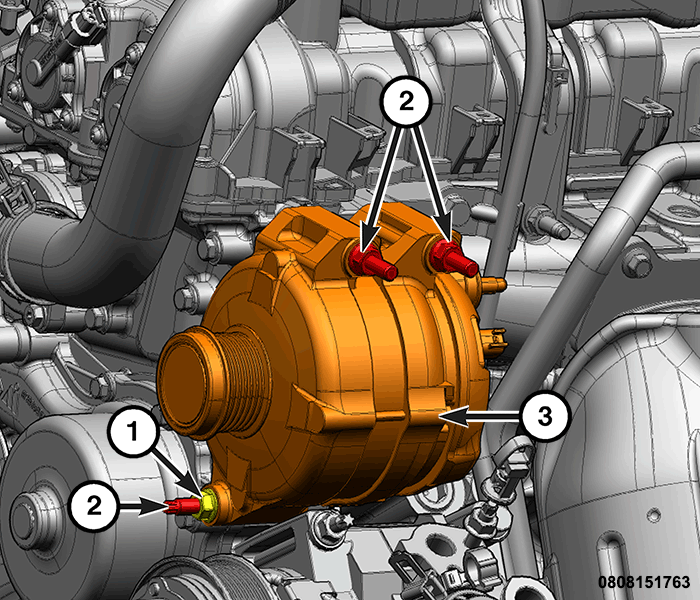

1. Position the generator (3) to the engine.
2. Install the upper and lower studs (2) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
3. Install the nut (1) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

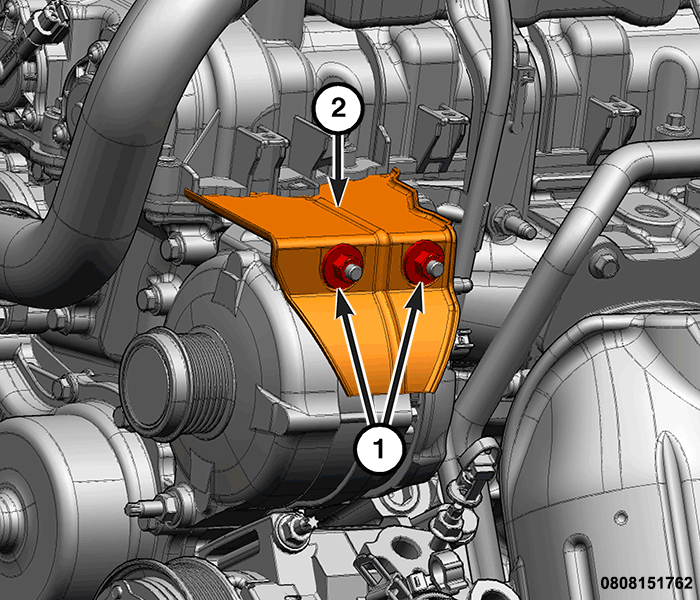

4. Position the splash shield (2) to the generator.
5. Install the two nuts (1) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

6. Install the B+ cable (3) and retainer (2) then tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
7. Install the generator field connector (1).
8. Raise vehicle.

   Courtesy of CHRYSLER GROUP, LLC

9. Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

10. Install the cooling fan (1). Refer to FAN, COOLING, INSTALLATION .

    Courtesy of CHRYSLER GROUP, LLC

11. Install the air cleaner body (1). Refer to BODY, AIR CLEANER, INSTALLATION .
12. Connect the negative battery cable.
