Module, Memory: Installation

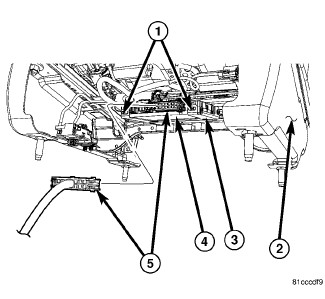

GC0124590Courtesy of CHRYSLER GROUP, LLC
CAUTION:

The Memory Seat Module (MSM) mounting tabs can be damaged during module installation. Use care to properly align tabs to prevent binding that could result in tab breakage.

  1. Place the Memory Seat Module (MSM) (4) into position making sure the mounting tabs (1) are properly aligned with the bracket (3).
  2. Push down on the MSM snapping the retaining clips into place in the bracket.
  3. Connect the MSM harness connectors (5).
  4. Connect the battery negative cable.
  5. Using an appropriate scan tool go to the MSM miscellaneous functions and perform the standardization routine.
  6. Verify system and vehicle operation.
