Sensor, Oil Pressure: Installation

GC0173640Courtesy of CHRYSLER GROUP, LLC
  1. Install the oil pressure sensor (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .

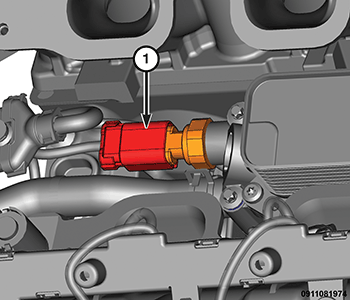

    GC0173574Courtesy of CHRYSLER GROUP, LLC
  2. Connect the oil pressure sensor wire harness connector (1).
  3. Install the upper and lower intake manifolds. Refer to MANIFOLD, INTAKE, INSTALLATION
