Air Cleaner: Installation

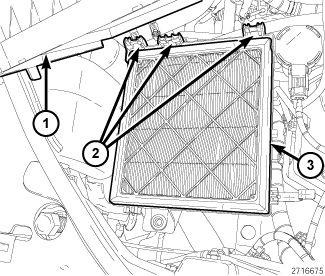

GC0145845Courtesy of CHRYSLER GROUP, LLC
  1. Install the air cleaner element (3) into the air cleaner housing.
  2. Position the cover (1) so that the alignment tabs insert into the lower housing (2).

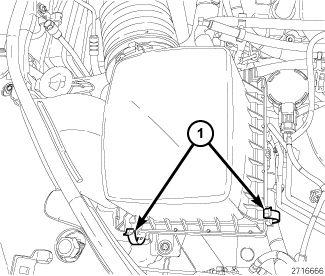

    GC0145844Courtesy of CHRYSLER GROUP, LLC
  3. Seat the cover onto the housing and secure the housing cover latches (1).
