Sensor, Speed, Input: Removal

  1. Disconnect the negative battery cable.
  2. Open the hood.
    GC0160252Courtesy of CHRYSLER GROUP, LLC

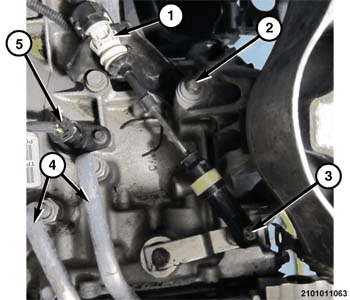

  3. Unplug the electrical connector at the input speed sensor (5).
    GC0122779Courtesy of CHRYSLER GROUP, LLC

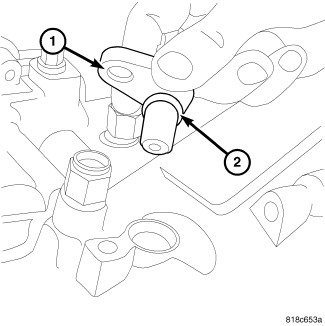

  4. Remove the bolt at input speed sensor.
  5. Pull up on input speed sensor (1) to remove.
