Sensor, Boost Pressure: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Inspect O-ring seal.
2. Lubricate O-ring seal.

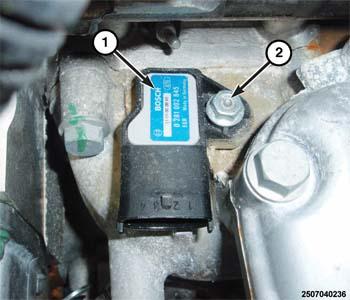

3. Install the boost pressure sensor (1) and securely tighten the bolt (2).

   Courtesy of CHRYSLER GROUP, LLC

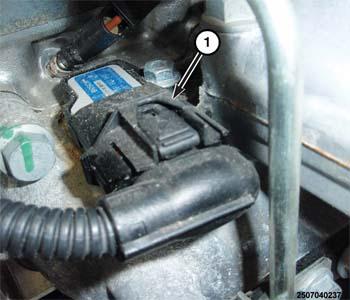

4. Connect the boost pressure sensor wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

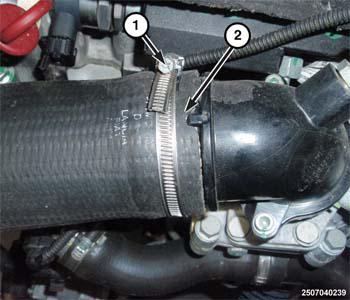

5. Install the Charge Air Cooler (CAC) hose from the EGR air flow control valve elbow and securely tighten clamp.
6. Install the radiator crossmember. Refer to CROSSMEMBER, RADIATOR, INSTALLATION .
7. Connect the negative battery cable.
