Sensor, Differential Pressure: Installation

Courtesy of CHRYSLER GROUP, LLC

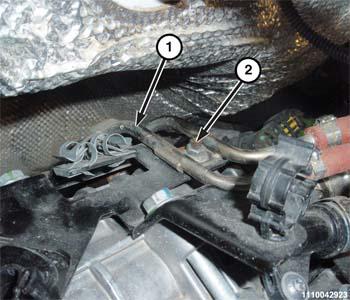

1. If remove, install the differential pressure sensor tubing (1). Tighten nut (2) to 9 N.m (80 in. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

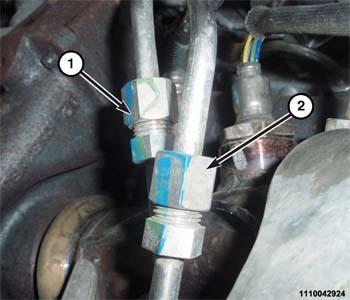

2. If removed, tighten the differential pressure sensor tube union nuts (1, 2) to 20 N.m (177 in. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

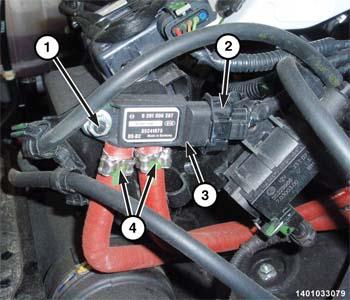

3. Install the differential pressure sensor vacuum hoses (4).
4. Install the differential pressure sensor (3). Tighten nut (1) 6 N.m 53 in. lbs.).
5. Connect the differential pressure sensor wire harness connector (2).
6. Connect the negative battery cable.
