3.0L Diesel

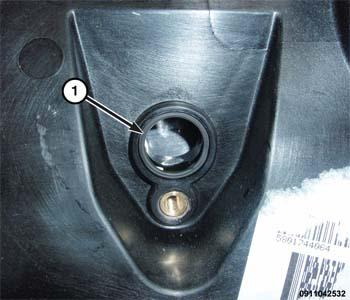

GC0162062Courtesy of CHRYSLER GROUP, LLC
  1. Install a new Camshaft Position Sensor (CMP) O-ring seal (1).

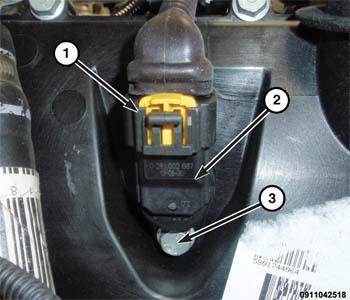

    GC0162010Courtesy of CHRYSLER GROUP, LLC
  2. Install the Camshaft Position Sensor (CMP) (2). Tighten bolt (3) to 10 N.m (89 in. lbs.).
  3. Connect the CMP wire harness connector (1).

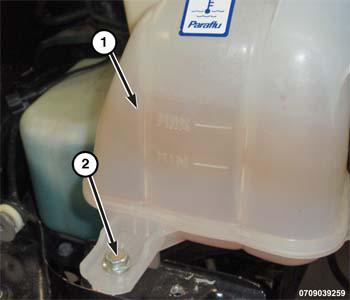

    GC0161840Courtesy of CHRYSLER GROUP, LLC
  4. Install the pressurized coolant bottle (1). Tighten bolt (2) to 24 N.m (18 ft. lbs.).

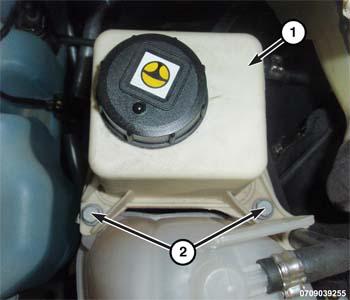

    GC0161814Courtesy of CHRYSLER GROUP, LLC
  5. Install the power steering reservoir (1). Tighten bolts (2) to 4 N.m (35 ft. lbs.).
  6. Install the engine cover (1).
  7. Connect the negative battery cable.
