Home >> Dodge and Ram >> 2018 >> ProMaster 1500 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Injection, Diesel >> Sensor, Oxygen >> Removal

Sensor, Oxygen: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the EGR cooler. Refer to COOLER, EXHAUST GAS RECIRCULATION (EGR), REMOVAL .

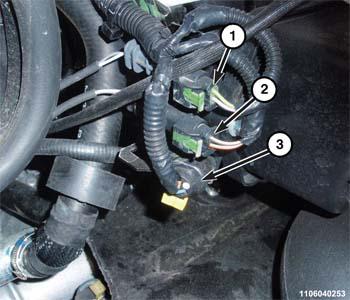

    GC0161796Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the oxygen sensor wire harness connector (3).
    GC0162100Courtesy of CHRYSLER GROUP, LLC
  4. Remove the oxygen sensor (3).
