Sensor, Crankshaft Position: Installation

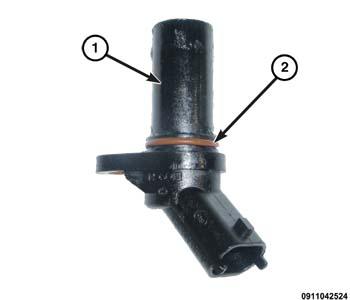

GC0162179Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Before tightening the Crankshaft Position Sensor (CKP) sensor mounting bolt, be sure the sensor is completely flush to the cylinder block. If the CKP sensor is not flush, damage to the sensor mounting tang may result.

  1. Inspect the O-ring seal (2) and replace if necessary.
    GC0162190Courtesy of CHRYSLER GROUP, LLC
  2. Install the Crankshaft Position Sensor (CKP) sensor (4). Tighten bolt (3) to 11 N.m (97 in. lbs.).

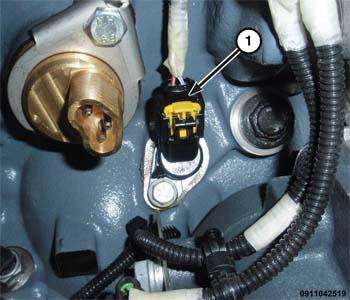

    GC0162045Courtesy of CHRYSLER GROUP, LLC
  3. Connect the CKP wire harness connector (3).
  4. Install the generator. Refer to GENERATOR, INSTALLATION .
  5. Connect the negative battery cable.
