Sensor, Accelerator Pedal Position: Removal

Courtesy of CHRYSLER GROUP, LLC

The accelerator pedal and APPS (Accelerator Pedal Position Sensor) are serviced as a complete assembly.

1. Disconnect the negative battery cable.

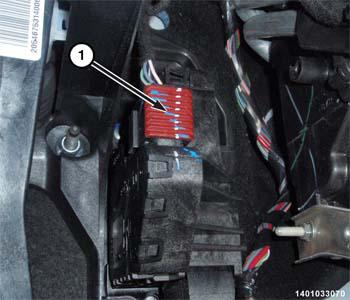

2. Disconnect the APPS wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

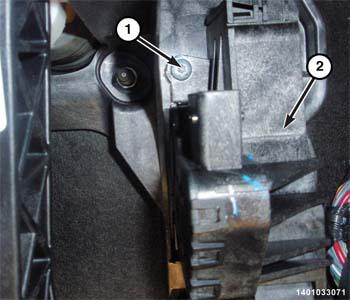

3. Remove screw (1) and the accelerator pedal/APPS assembly (2) from vehicle.
