Tank, Fuel: Installation
- If removed, install fuel pump module. Refer to MODULE, FUEL PUMP, INSTALLATION .WARNING:
Support fuel tank with a transmission jack or equivalent. Use straps to secure the fuel tank to the jack. Failure to properly support and secure the fuel tank during removal may cause fuel to spill or fuel tank to fall from jack assembly.

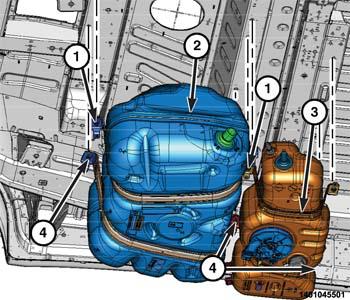

- Position fuel tank (2) onto a transmission jack and raise fuel tank into vehicle position.
- Install the left fuel tank strap bolts (1) and tighten to 55 N.m (41 ft. lbs.).NOTE:
The right fuel tank strap also secures the DEF tank.
- Install the right gas/DEF tank strap bolt and tighten to 55 N.m (41 ft. lbs.).

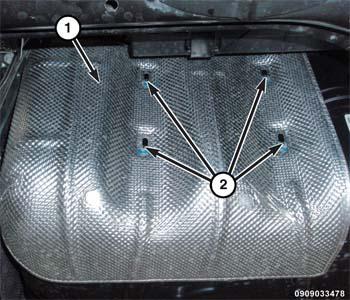

- Install the fuel tank shield (1). Tighten nuts (2) to 4 N.m (35 in. lbs.).
- Install fuel fill hose (2) onto fuel tank (1) and securely tighten clamp (1).

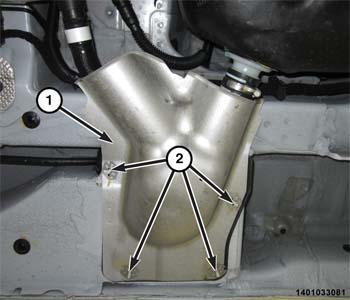

- Install the fill tube shield (1) and securely tighten fasteners (2).
- Remove support and lower the vehicle.
- Connect the fuel vent line quick connect fitting (2).
- Connect fuel line quick connect fittings (1) and (3).
- Connect the fuel pump module wire harness connector (4).
- Install the fuel pump access cover (1) and securely tighten bolts.
- Install the floor cover (3) and tighten fasteners (1, 2).
- Fill the fuel tank.
- Connect the negative battery cable.
- Use the scan tool ASD Fuel System Test to pressurize the fuel system. Check for leaks.
