Exhaust Gas Temperature Sensor DPF 1/2

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

The exhaust gas temperature sensor requires care when handling and installing. The exhaust gas temperature sensor is sensitive to knocks and bending. For this reason if the exhaust gas temperature sensor has been dropped, it must not be installed as damage to the sensor may have occurred. Do not remove from packaging until ready to install. Failure to follow these instructions may result in damage to the exhaust gas temperature sensor.

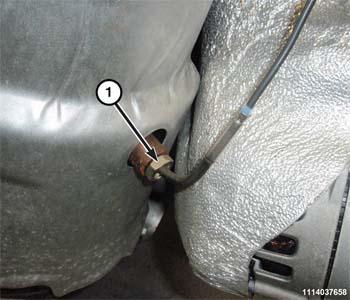

Install the exhaust temperature sensor (1) and tighten to 45N.m (33 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC
Connect the front exhaust temperature sensor wire harness connector (2).
Connect the negative battery cable.
