Catalyst, Selective Catalytic Reduction (SCR): Installation

Courtesy of CHRYSLER GROUP, LLC

1. Clean all gasket sealing surfaces.
2. Install new Selective Catalytic Reduction Catalyst (SCR) flange gasket.
3. Position the SCR (2) onto flange and install flange nuts (1) finger tighten.

   Courtesy of CHRYSLER GROUP, LLC

4. Install the rear isolator (2) onto the SCR hanger rods.

   Courtesy of CHRYSLER GROUP, LLC

5. Install the front isolator (2) onto the SCR hanger rods.

   Courtesy of CHRYSLER GROUP, LLC

6. Tighten the SCR flange nuts (1) to 25 N.m (18 ft. lbs.).
7. Install the muffler assembly. Refer to MUFFLER, EXHAUST, INSTALLATION .
8. Check the exhaust system for contact with the body panels. A minimum of 25 mm (1.0 in.) is required between the exhaust system components and body/frame parts. Make the necessary adjustments, if needed.
9. Install the Particulate Matter (PM) sensor. Refer to SENSOR, PARTICULATE MATTER, INSTALLATION .
10. Install the NOx sensor 1/2, refer to the appropriate installation service information.

    Courtesy of CHRYSLER GROUP, LLC

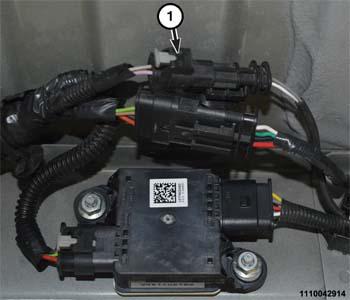

11. Connect the exhaust temperature sensor T4 wire harness connector (1).

    Courtesy of CHRYSLER GROUP, LLC

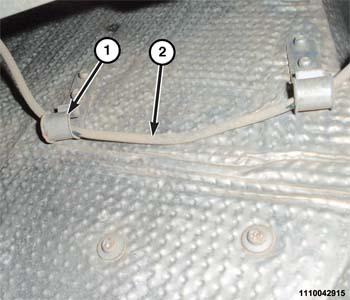

12. Attach the exhaust temperature sensor wire harness (2) to heat shield retainers (1).

    Courtesy of CHRYSLER GROUP, LLC

13. Attach connector (2) to bracket and connect the exhaust temperature sensor T3 wire harness connector (1).

    Courtesy of CHRYSLER GROUP, LLC

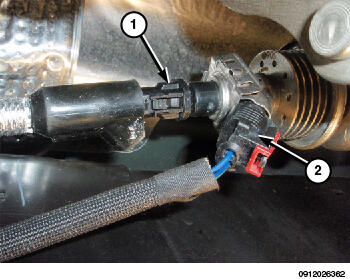

14. Connect the DEF fluid supply line (1) quick connect fitting.
15. Connect the DEF injector wire harness connector (2).
16. remove support and lower the vehicle.
17. Connect the negative battery cable.
18. Using a scan tool, perform RESET REGENERATIVE FILTER TIMERS function found under ENGINE MISC. FUNCTIONS.
