2.4L 1/2 Intake

GC0082374Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover. (Refer to ENGINE COVER ).
  3. Reposition the engine wiring harness to gain access to the intake CMP wiring harness connector.
    GC0173980Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the Camshaft Position (CMP) sensor wire harness connector (1).

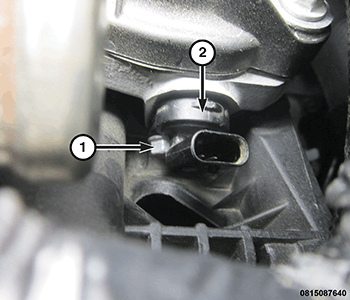

    GC0173984Courtesy of CHRYSLER GROUP, LLC
  5. Remove the CMP sensor mounting screw (1).
  6. Remove the CMP sensor (2).
