Exhaust System: Description
The exhaust system on the 2.4L engine models consists of a front mounted catalytic converter, single outlet resonator/muffler assembly, band clamp, and support isolators. The upstream oxygen sensor is located in the exhaust manifold. The downstream oxygen sensor is located in the catalytic converter.

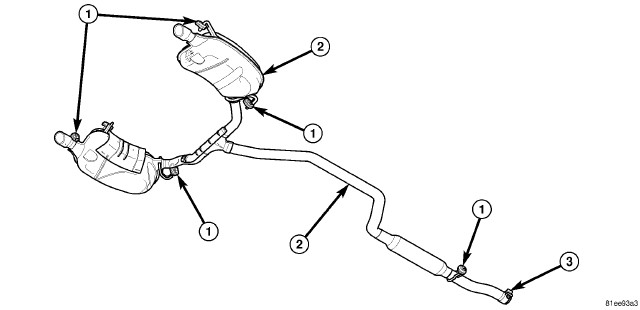

| 1 - INSULATOR |
| 2 - MUFFLER/EXHAUST PIPE ASSEMBLY |
| 3 - BAND CLAMP |
The exhaust system on the 3.6L engine models consists of a front mounted catalytic converter, dual outlet resonator/muffler assembly, band clamp, and support isolators. The upstream oxygen sensor is located in the exhaust manifold. The downstream oxygen sensor is located in the catalytic converter.
