Supercharger System: Description

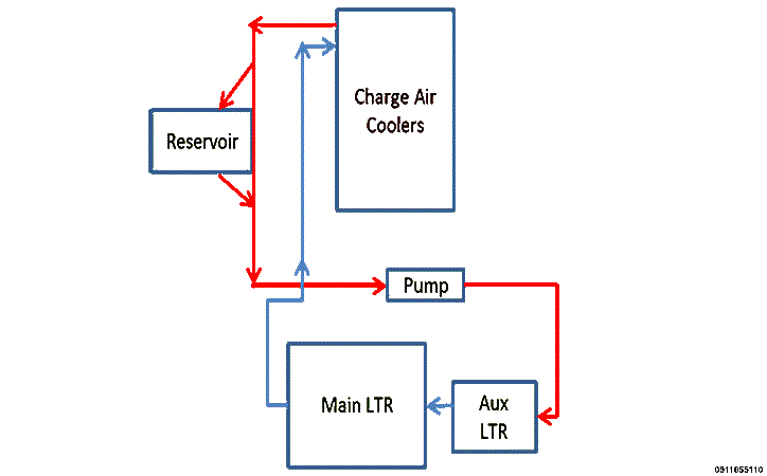

6.2L Hemi

Courtesy of CHRYSLER GROUP, LLC

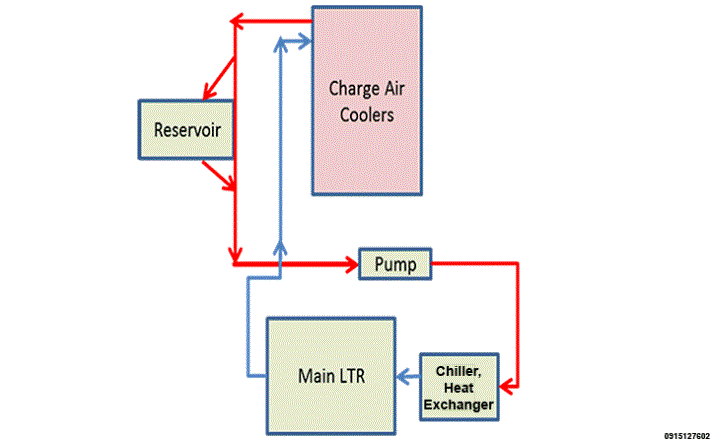

6.2L HO

Courtesy of CHRYSLER GROUP, LLC

The Low Temperature Radiator (LTR) cooling system is a closed secondary system that regulates charge air cooler operating temperature.

• The system must be vacuum filled. Refer to STANDARD PROCEDURE .
• The LTR system has a 18 psi reservoir cap, the engine cooling system has a 21 psi reservoir cap.
• The LTR system uses a 250 watt electric coolant pump.
