Radiator, Engine Cooling: Installation: 5.7L/6.4L
NOTE:
Assistance may be required for radiator placement into vehicle till the lower radiator core support has been installed.
- Install the radiator into engine compartment and seat the radiator assembly lower rubber isolators into the mounting holes in radiator lower support.

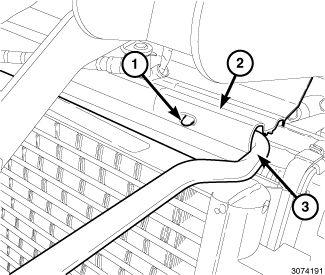

- Install the upper shroud cover (2) by applying pressure downwards till the snap into place.
- Position the condenser on radiator and loosely install the support bolt (3). Tighten bolt (3) to the proper torque specifications. Refer to 5.7L/6.4L TORQUE SPECIFICATIONS .
- Install the lower mounting bolts. Tighten bolts to the proper torque specifications. Refer to 5.7L/6.4L TORQUE SPECIFICATIONS .
- Tighten the bolt (2) located between the cooler lines to the proper torque specifications. Refer to 5.7L/6.4L TORQUE SPECIFICATIONS .
- Install the upper radiator isolator (1). Tighten the bolts (2) to the proper torque specifications. Refer to 5.7L/6.4L TORQUE SPECIFICATIONS .
- Install the front bumper fascia. Refer to FASCIA, FRONT, INSTALLATION .
- Install the radiator fan. Refer to FAN, COOLING, INSTALLATION .
- Install the lower radiator hose (1).
- Install the belly pan and securely tighten bolts (1).
- Remove support and lower the vehicle.
- Install the upper radiator hose.
- Install the air cleaner body. Refer to For 5.7L, refer to BODY, AIR CLEANER, INSTALLATION . For 6.4L, refer to BODY, AIR CLEANER, INSTALLATION .
- Fill the cooling system with coolant. Refer to STANDARD PROCEDURE .
- Connect the negative battery cable.
- Operate the engine until it reaches normal operating temperature. Check the cooling system and automatic transmission for the correct fluid levels.
