Radiator, Low Temperature: Installation
- Install the Low Temperature Radiator (LTR) into engine compartment and align to the engine radiator assembly.

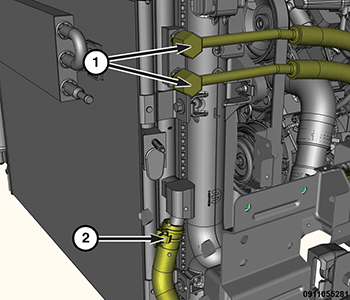

- Install the outlet hose onto the LTR and secure the clamp (2). Ensure that the hose is fully seated on the port and that the clamp is not resting on the bead.

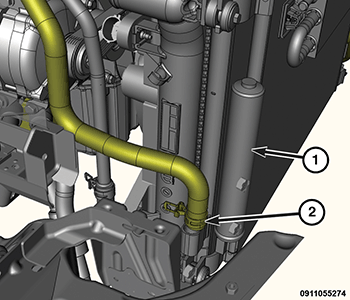

- Install the inlet hose onto the LTR and secure the clamp (2). Ensure that the hose is fully seated on the port and that the clamp is not resting on the bead.
- Install the transmission oil cooler lines (1).
- Install the A/C condenser. Refer to CONDENSER, A/C, INSTALLATION .
- Fill the cooling system with coolant. Refer to STANDARD PROCEDURE .
- Check and fill the automatic transmission with the appropriate fluid. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
- Connect the negative battery cable.
- Operate the engine until it reaches normal operating temperature. Check the cooling system and automatic transmission for the correct fluid levels.
