Antenna, Remote Start: Installation

Courtesy of CHRYSLER GROUP, LLC

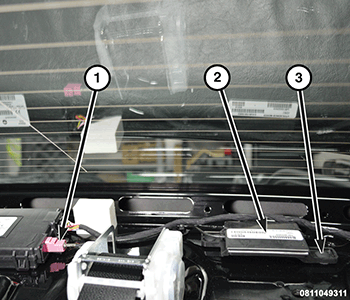

Position the Remote Start Antenna assembly (2) to the vehicle and install the push tab retainers (3).
Connect the electrical connectors at both the antenna module and the Remote Frequency Hub Module (RFHM) (1).
Connect the negative battery cable.
Connect the scan tool to the vehicle.
Perform the "Programming the RF-Hub" instructions. Refer to STANDARD PROCEDURE .
After programming the FOBIKs and the module, install the rear shelf cover. Refer to PANEL, REAR SHELF, INSTALLATION .
Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

NOTE:

Replace and Program the module(s) per the "RF-Hub, BCM, PCM, FOBIK and ELV Replacement and Programming Order Guide". Refer to STANDARD PROCEDURE .
