Insulator, Engine Mount, Left: Installation

Courtesy of CHRYSLER GROUP, LLC

1. If removed, position the engine mount bracket, install the four retaining bolts and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
2. Install the engine mount isolator (2) onto the bracket and tighten the retaining nuts (1) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
3. Lower the screw jack until both engine mount isolators are in position.

   Courtesy of CHRYSLER GROUP, LLC

4. Lower the engine so the weight is resting on the isolators and remove the screw jack.
5. Install both left and right engine mount isolator to frame bolts (2) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

6. Position the engine mount isolator heat shields (4), install the retaining nuts (3) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

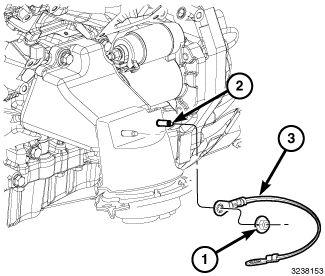

7. Install the ground strap (3) to onto the left side engine mount stud (2).

   Courtesy of CHRYSLER GROUP, LLC

8. Install the belly pan and retainers (1).
9. Remove support and lower the vehicle.
10. Connect the negative battery cable.
