Converter, Catalytic: Installation: 5.7L

Courtesy of CHRYSLER GROUP, LLC

NOTE:

If a new catalytic converter is installed in the vehicle, the Powertrain Control Module (PCM) mileage needs to be reset for proper operation of emission monitors and the health of the catalytic converter.

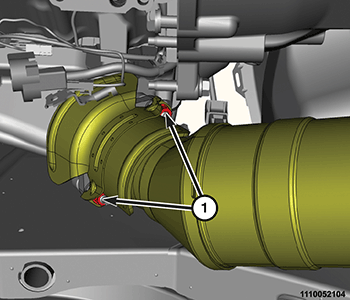

Position the catalytic converter onto the exhaust manifold flange and install the flange nuts (1) finger tight.
Connect the oxygen sensor wire harness connectors.

Courtesy of CHRYSLER GROUP, LLC

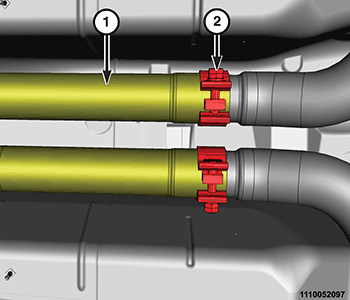

Position the muffler and resonator assembly (1) onto the catalytic converters.
Tighten the exhaust manifold flange nuts to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Tighten the band clamps (2) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Install the heat shield retaining nuts (1) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Lower the vehicle.
Connect the negative battery cable.
Start the engine and check for exhaust leaks.
