Sensor, EGR Temperature: Installation

GC0157440Courtesy of CHRYSLER GROUP, LLC
  1. Clean the mounting area of the EGR temperature sensor on the EGR valve.
  2. Install EGR temperature sensor (1) and tighten to 25 N.m (18 ft. lbs.).
  3. Connect EGR temperature sensor wire harness connector (2).

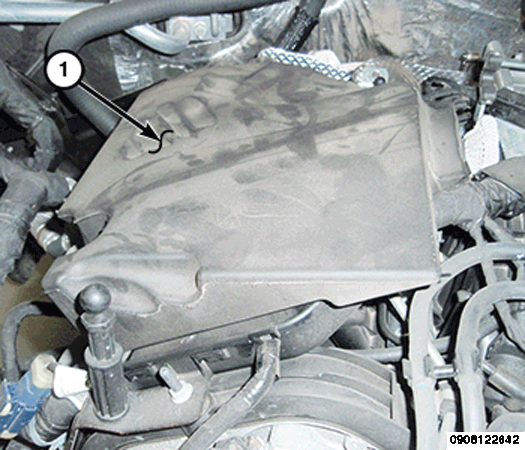

    GC0175022Courtesy of CHRYSLER GROUP, LLC
  4. Install the right fuel injector cover (1).

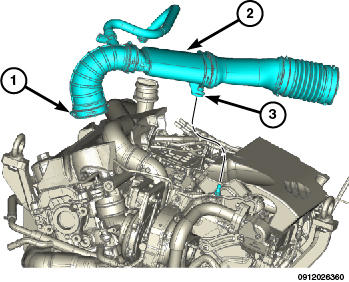

    GC0157994Courtesy of CHRYSLER GROUP, LLC
  5. Install the intake air tube (2) onto turbocharger and securely tighten clamp (1).

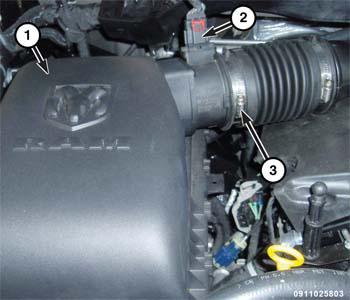

    GC0158193Courtesy of CHRYSLER GROUP, LLC
  6. Install the intake air tube (3) to MAF sensor and securely tighten clamp.

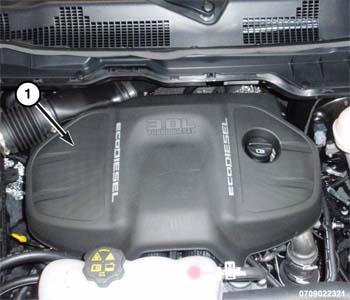

    GC0158138Courtesy of CHRYSLER GROUP, LLC
  7. Install the engine cover (1).
  8. Connect the negative battery cable.
