Draining Cooling System
WARNING:
Do not remove the radiator pressure cap, cylinder block drain plugs or loosen the radiator draincock with the system hot and under pressure. Serious burns from coolant can occur.
When servicing the cooling system, it is essential that coolant does not drip onto the accessory drive belt and/or pulleys. Shield the belt with shop towels before working on the cooling system. If coolant contacts the belt or pulley, flush both with clean water.
- Remove the coolant bottle pressure cap.
- Raise the vehicle on a hoist.NOTE:

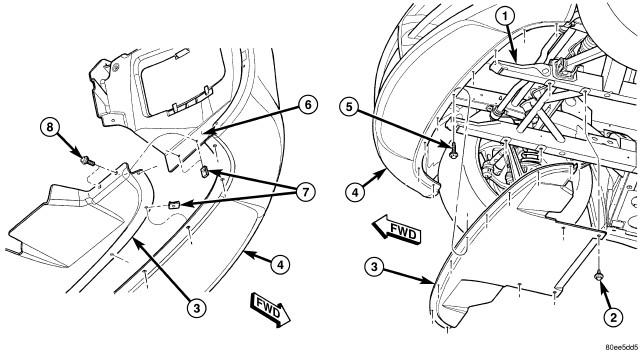

For access to the radiator draincock, it is necessary to remove the front extension belly pan. Refer to BELLY PAN, REMOVAL .
- Open the radiator draincock located at the lower left side of radiator.
- Remove the engine block drain plug(s).
