Bottle, Pressurized Coolant: Installation

Courtesy of CHRYSLER GROUP, LLC

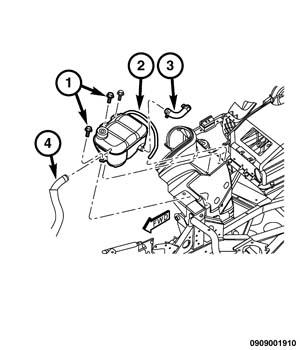

1. Position the coolant recover container and install the mounting bolts (1). Tighten the bolts to 5 N.m (40 in. lbs.).
2. Connect the hoses (3 and 4) to the coolant recovery container.
3. If removed. Install the overflow hose (2).
4. Fill the cooling system. Refer to FILLING COOLING SYSTEM  .
