Arm, Lower Control: Removal

NOTE:

Review all Warnings and Cautions. Refer to WARNING .

  1. Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove wheel and tire assembly. Refer to REMOVAL .

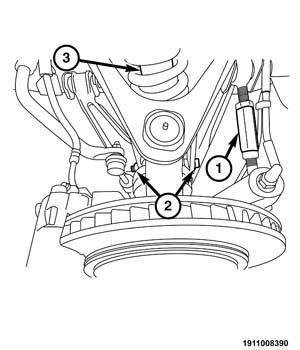

    GC0159143Courtesy of CHRYSLER GROUP, LLC
  3. Remove nut and bolt mounting shock assembly clevis bracket (2) to isolator bushing on lower control arm.
    CAUTION:

    The nut must be positioned at the end of the stabilizer bar link stud to help prevent the end of the stud from being damaged when separating it from the lower control arm.

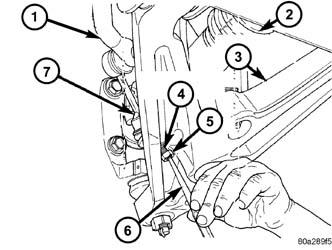

    GC0135760Courtesy of CHRYSLER GROUP, LLC
  4. Remove stabilizer bar link from lower control arm as follows:
    1. Loosen, but do not remove, nut (5) attaching rear stabilizer bar link to lower control arm. Thread nut to end of stabilizer bar link stud.
    2. Position center punch (6) in dimple on end of link stud.
    3. Strike center punch with hammer to remove link stud from lower control arm.
    GC0156566Courtesy of CHRYSLER GROUP, LLC
  5. Remove cotter pin and castle nut from lower ball joint stud.
    CAUTION:

    Do not strike or apply heat to steering knuckle in an effort to separate ball joint studs from steering knuckle.

    NOTE:

    Use of Spacer, Special Tool (special tool #6983, Adapter), is necessary to allow proper use of Puller, Special Tool (special tool #C-4150A, Press, Ball Joint), to release lower ball joint from lower control arm.

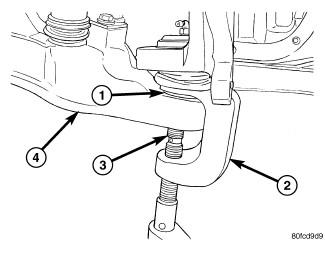

    GC0135762Courtesy of CHRYSLER GROUP, LLC
  6. Insert Spacer (1), Special Tool (special tool #6983, Adapter), between lower ball joint grease seal boot and lower control arm (4). Push Spacer in until it surrounds ball joint stud. Use care not to damage grease seal boot.
    CAUTION:

    When releasing ball joint from knuckle using Puller (2), Special Tool C-4150A, use care not to pinch and damage ball joint grease seal.

  7. Install Puller (2), Special Tool (special tool #C-4150A, Press, Ball Joint), over Spacer and lower control arm as shown. Ball bearing in bolt of Special Tool  (special tool #C-4150A, Press, Ball Joint)must be centered in end of lower ball joint stud.
  8. Release lower ball joint (3) from lower control arm using Puller. Remove tools. Lift ball joint stud from lower control arm.

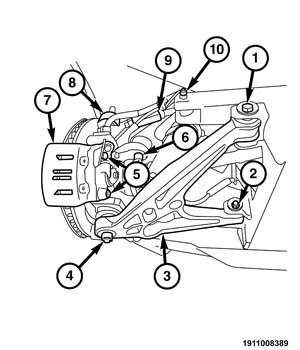

    GC0159150Courtesy of CHRYSLER GROUP, LLC
  9. Remove nuts, cam bolts and washers (1, 2) fastening lower control arm to frame.
  10. Remove the lower control arm.
