U1009-00-Lin 2 Bus: Notes

WARNING: This page is about a different car, the 2017 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

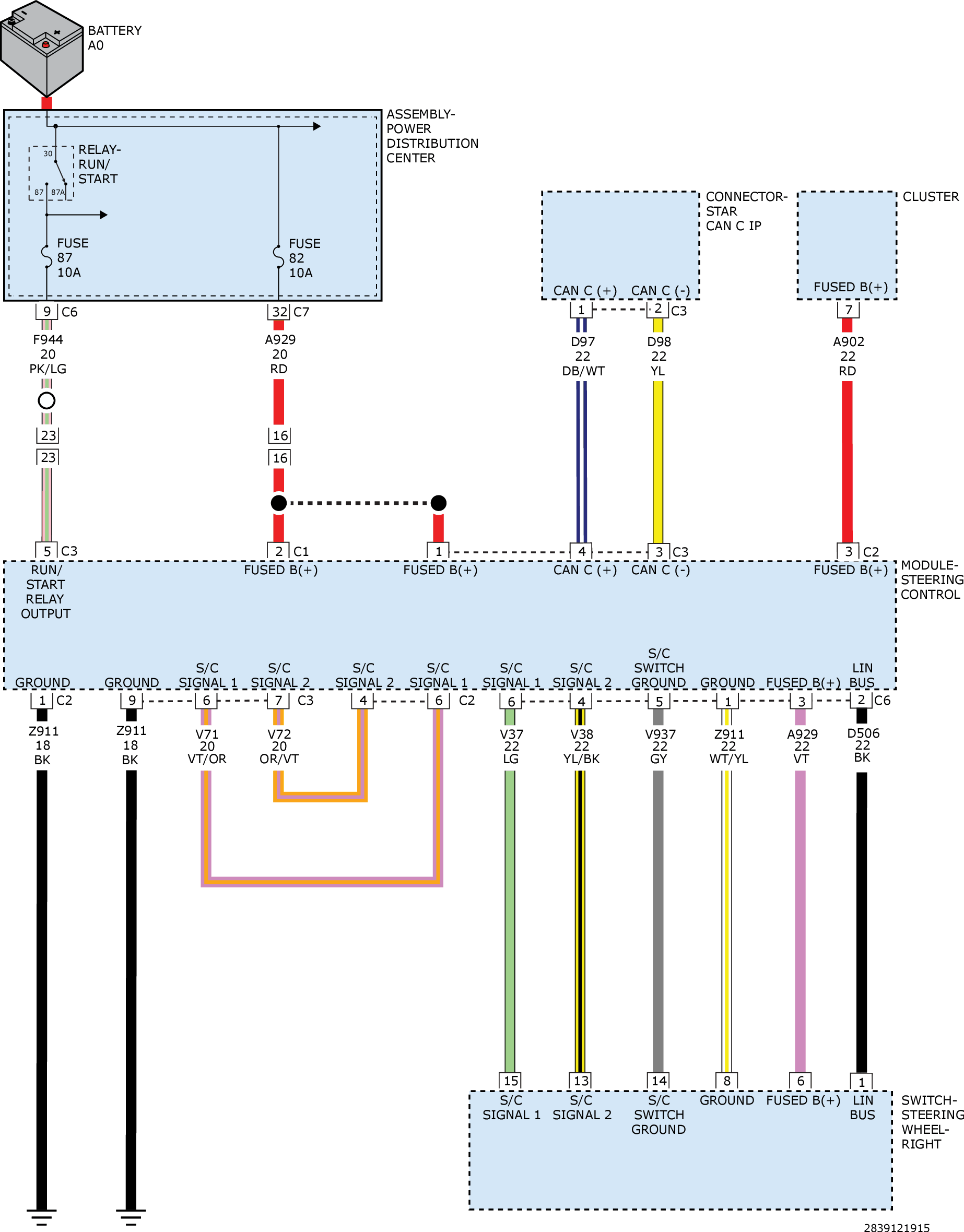

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

Courtesy of CHRYSLER GROUP, LLC
