Capacitor, Ignition: Removal: Removal

Fig 1: Identifying IBS, Electrical Connector, (-) Battery Post, Cable Nut & Cable

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect the battery negative cable (4).

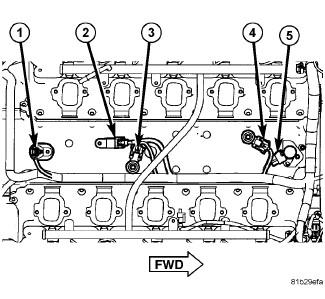

   Fig 2: Identifying Sensor Electrical Connectors

   Courtesy of CHRYSLER GROUP, LLC
2. Remove the intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL .
3. Disconnect the ignition capacitor (2) electrical connector.
   Fig 3: Identifying Ignition Capacitor

   Courtesy of CHRYSLER GROUP, LLC
4. Remove the sensor mounting bolt (1).
5. Remove the ignition capacitor (2) from the engine block (3).
