Sensor, Manifold Air Pressure (Map): Installation

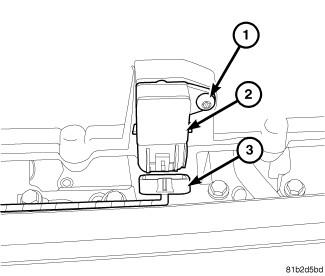

GC0135707Courtesy of CHRYSLER GROUP, LLC
  1. Install the manifold absolute pressure (MAP) sensor (2) and bolt (1) to intake manifold. Tighten bolt to 4 N.m (35 in. lbs.).
  2. Connect the electrical connector (3) to MAP sensor (2).
