Injector(S), Fuel: Installation

GC0135747Courtesy of CHRYSLER GROUP, LLC
  1. Install fuel injector to fuel rail.

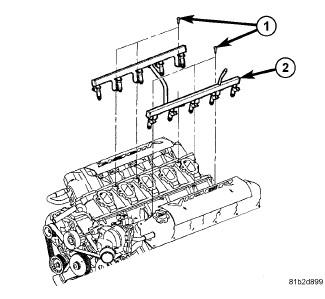

    GC0135712Courtesy of CHRYSLER GROUP, LLC
  2. Install fuel rail to cylinder heads. Refer to RAIL, FUEL, INSTALLATION .
