Assembly, Spout: Removal

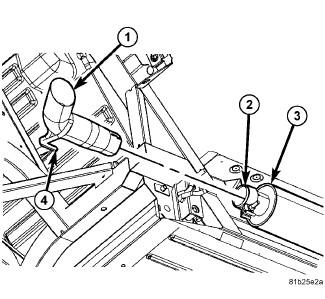

| 1 - EXHAUST PIPE SPOUT |
| 2 - CLAMP |
| 3 - RESONATOR |
| 4 - SUPPORT BRACKET |
NOTE:
This procedure covers removal of either the right OR left spout assembly. Remove the appropriate parts for the side that is being worked on.
- Raise and support vehicle.
- Remove sill panel. Refer to PANEL, TRIM SILL, REMOVAL .
- Apply penetrating oil to spout assembly band clamp (2).
- Loosen spout assembly band clamp (2).
- Remove "B" pillar support isolator.
- Separate exhaust pipe spout (1) from resonator (3).
- Remove exhaust pipe spout (1).
