CROSSMEMBER, Transmission: Removal

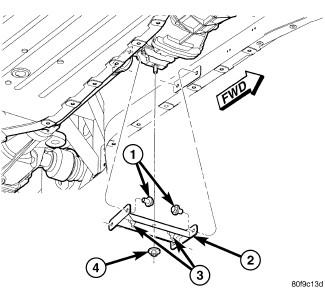

| 1 - SIDE BOLTS (2 PER SIDE) |
| 2 - CROSSMEMBER |
| 3 - SLIDE NUTS |
| 4 - TRANSMISSION MOUNT NUT |
- Raise and support the vehicle.
Refer to HOISTING, STANDARD PROCEDURE .
- Remove the belly pan.
Refer to BELLY PAN, REMOVAL .
- Remove the transmission mount nut (4).
- Loosen the crossmember slide nuts (3).
- Remove the crossmember side bolts (1).
