CROSSMEMBER, Transmission: Installation

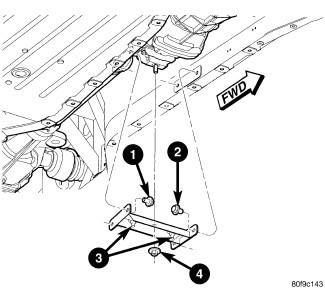

Fig 1: Transmission Crossmember Tightening Sequence
GC0135691Courtesy of CHRYSLER GROUP, LLC
  1. Install the crossmember and install the side bolts.
  2. Tighten the side bolts to 54 N.m (40 ft. lbs.) using the sequence shown.
  3. Tighten the slide nuts to 54 N.m (40 ft. lbs.).
  4. Install and tighten the transmission mount nut (4) to 33 N.m (24 ft. lbs.).
  5. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
