Sensor, Boost Pressure: Installation

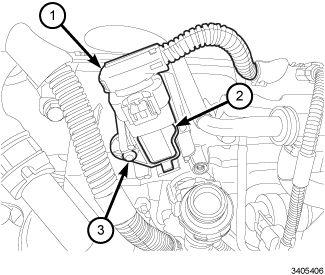

GC0147935Courtesy of CHRYSLER GROUP, LLC
  1. Install the boost pressure sensor (2) securely tighten bolt (3).
  2. Connect the boost pressure sensor (2) wire harness connector (1).

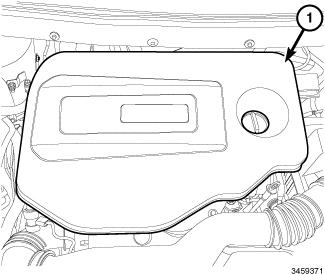

    GC0148021Courtesy of CHRYSLER GROUP, LLC
  3. Install the engine cover (1).
  4. Connect the negative battery cable.
