Draining Low Temperature Radiator
NOTE:
Do not remove or loosen reservoir cap or coolant hose with system hot and under pressure.
- Remove the reservoir cap.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL .

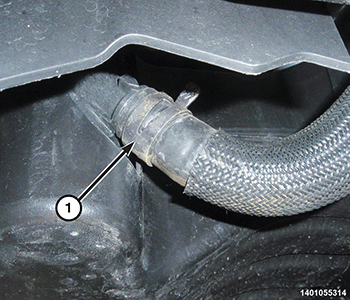

- Remove the outlet coolant hose (1) from the auxiliary low temperature radiator and drain the coolant into a clean container.
