6.2L Single Fan
CAUTION:
When installing the cooling fan assembly. Care must be used so that the fan shroud does not contact the radiator or the radiator fins. Damaged may cause leaking.
- Pushing slightly forward on the lower radiator support (2), install the cooling fan assembly (3) from the bottom of the vehicle.
- Engage the cooling fan (1) into the lower shroud retaining clips (2).

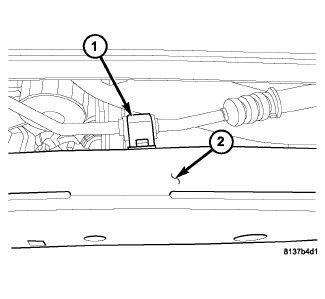

- Position the power steering hose to the cradle (2) and securely tighten the power steering hose retainer (1).
- Tighten lower radiator support (2) bolts (1) to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
- Install the hose clamp and position the Low Temperature Radiator (LTR) crossover tube to the lower radiator support.
- Install the two push pins (1) to the lower radiator support, securing the LTR crossover tube.

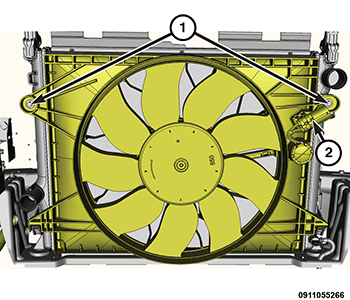

- Install the cooling fan retaining bolts (1) and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
- Connect the cooling fan wire harness connector (2).
- Fill the LTR cooling system. Refer to STANDARD PROCEDURE .NOTE:
The LTR cooling system must be vacuum filled.
- Connect the negative battery cable.
- Operate the engine until it reaches normal operating temperature. Check the fan for proper operation.
