Sensor, TMAP: Installation

Courtesy of CHRYSLER GROUP, LLC

Check condition of TMAP sensor O-ring.
Clean the TMAP sensor mounting area at intake manifold plenum.
Lubricate TMAP sensor O-ring with clean engine oil.

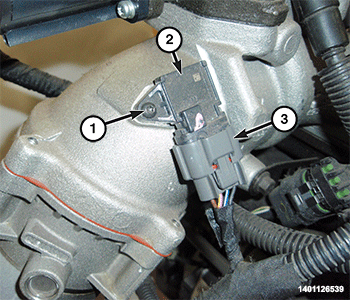

Install the TMAP sensor (2) and tighten the screw (1) to 1 N.m (9 in. lbs.).
Connect the TMAP sensor wire harness connector (3).

Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (3) and tighten the bolts (1) to 10 N.m (89 in. lbs.).
Install the engine oil dipstick (2).
Connect both of the negative battery cables.
