DECOUPLER, Generator: Removal: Removal

Fig 1: IBS, Electrical Connector, (-) Battery Post, Cable Nut & Cable

Courtesy of CHRYSLER GROUP, LLC

Disconnect battery negative cable (4).

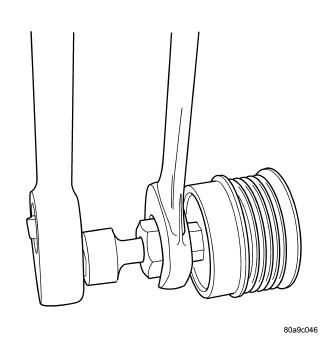

Fig 2: Special Tool 8433 & Decoupler
Courtesy of CHRYSLER GROUP, LLC
Remove generator from the engine. Refer to GENERATOR, REMOVAL .
Position Special Tool (special tool #8433A, Remover/Installer, Decoupler). into decoupler. Align to hex end of generator shaft.

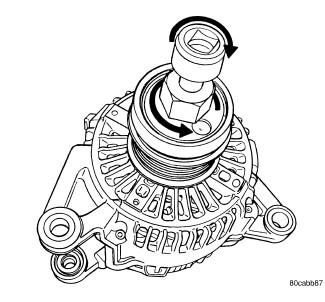

Fig 3: Decoupler Removal (Litens)
Courtesy of CHRYSLER GROUP, LLC
The generator shaft uses conventional right-hand threads to attach decoupler. To break decoupler loose from generator threads, rotate end of tool clockwise.
After breaking loose with tool, unthread decoupler by hand from generator.
