Standard Procedure: Lubrication

Periodic lubrication of the suspension system is required. Refer to the Owner's Manual for schedules.

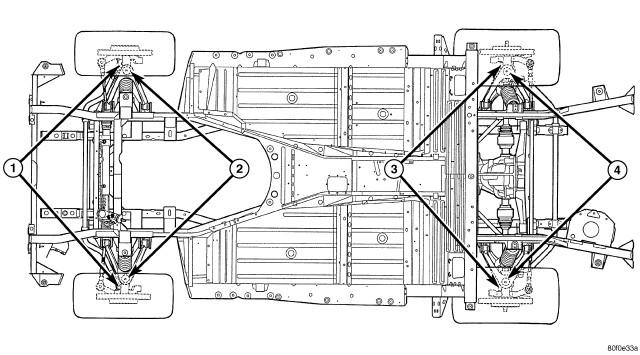

Courtesy of CHRYSLER GROUP, LLC

1 - FRONT LOWER BALL JOINTS

2 - FRONT UPPER BALL JOINTS

3 - REAR LOWER BALL JOINTS

4 - REAR UPPER BALL JOINTS

The following lubrication points on the suspension system must be lubricated periodically.

Front Suspension:

Rear Suspension:

Lubricate each point until a slight swelling is noticed in the seal boot. Do not overfill the seal boots.
