Bushings, Upper Control Arm: Removal

NOTE:

The following procedure can be used for either lower control arm isolator bushing.

  1. Remove lower control arm from vehicle. Refer to ARM, LOWER CONTROL, REMOVAL .

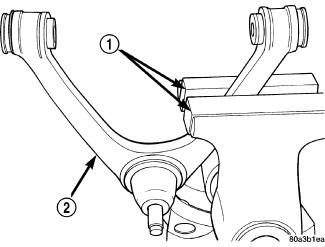

    GC0134994Courtesy of CHRYSLER GROUP, LLC
    1 - SOFT JAW VISE CAPS
    2 - CONTROL ARM
    CAUTION:

    Use a vise equipped with soft jaw caps to protect the surface of the control arm from damage.

  2. Clamp upper control arm (2) securely in vise so that bushing to be removed is closest to vise jaws.
    NOTE:

    Before using Special Tool (special tool #6969B, Remover/Installer, Bushing), lubricate threads of Screw Assembly 6969-3 with appropriate lubricant.

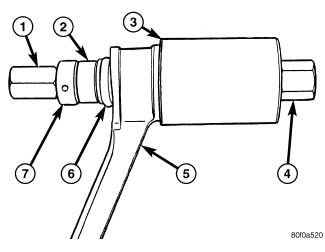

    GC0134995Courtesy of CHRYSLER GROUP, LLC
    1 - DOUBLE THREADED NUT 6969-4
    2 - SPACER 6969-1
    3 - RECEIVER 6969-2
    4 - SCREW ASSEMBLY 6969-3
    5 - CONTROL ARM
    6 - BUSHING
    7 - BEARING
  3. Assemble pieces of Remover, Special Tool (special tool #6969B, Remover/Installer, Bushing), through bushing (6) as shown.
    CAUTION:

    Do not use any type of impact wrench on Special Tool 6969B. Use only hand tools.

    NOTE:

    While removing tools and bushing from arm a small portion of bushing rubber may come loose lodging itself between Remover and control arm bushing boar, causing some resistance.

  4. Hold Screw (4), Special Tool 6969-3, stationary while rotating Nut (1), Special Tool 6969-4, clockwise. This action will force isolator bushing out of control arm (5), into Receiver, Special Tool 6969-2.
NOTE:

For bushing installation. Refer to BUSHING(S), LOWER CONTROL ARM, INSTALLATION , BUSHINGS, STABILIZER BAR, INSTALLATION  and BUSHINGS, UPPER CONTROL ARM, INSTALLATION .
