P2273-O2 Sensor 2/2 Signal Biased Rich: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

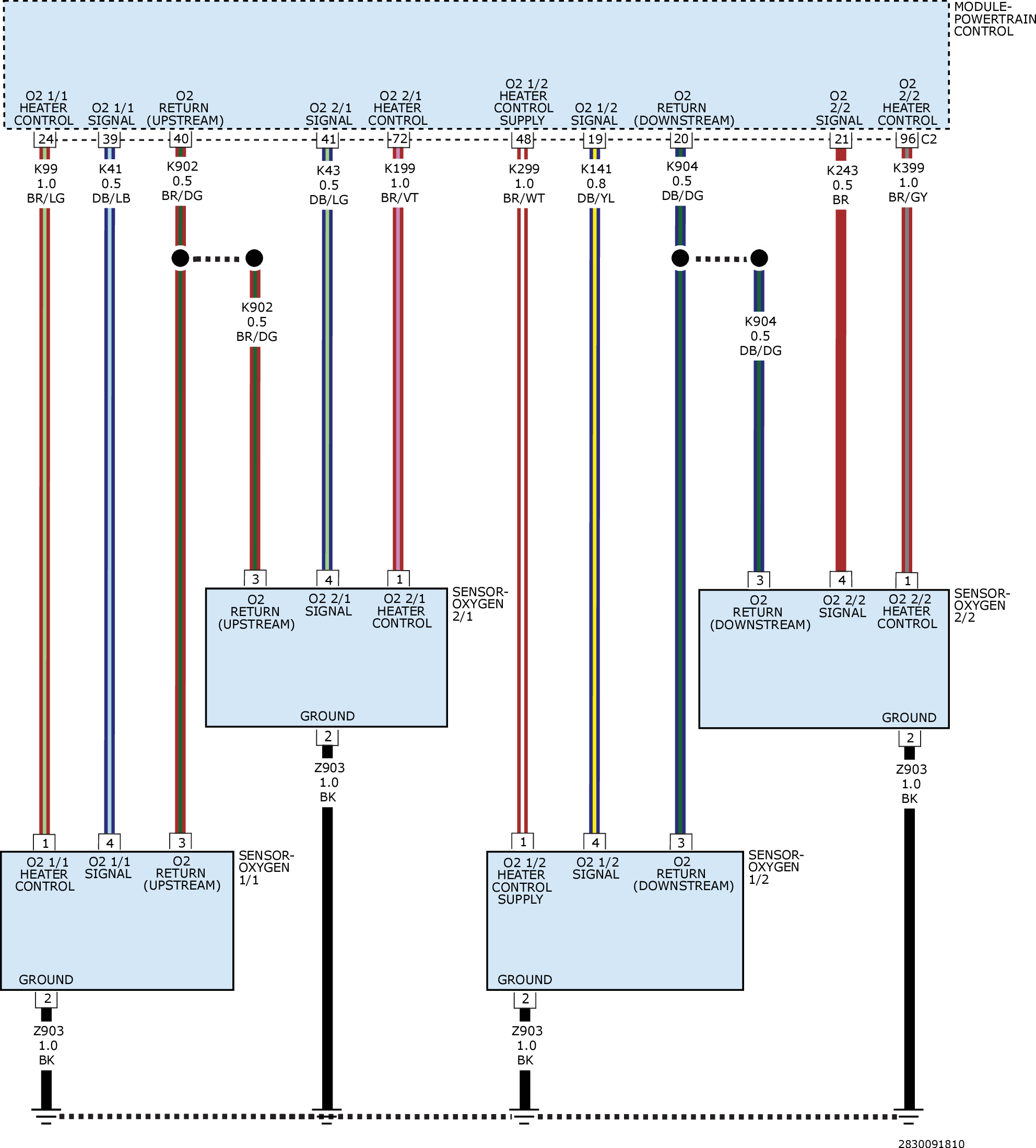

Fig 1: O2 Sensor Circuit Diagram

GC0174876

Courtesy of CHRYSLER GROUP, LLC
