P2066-Fuel Level Sensor 2 Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

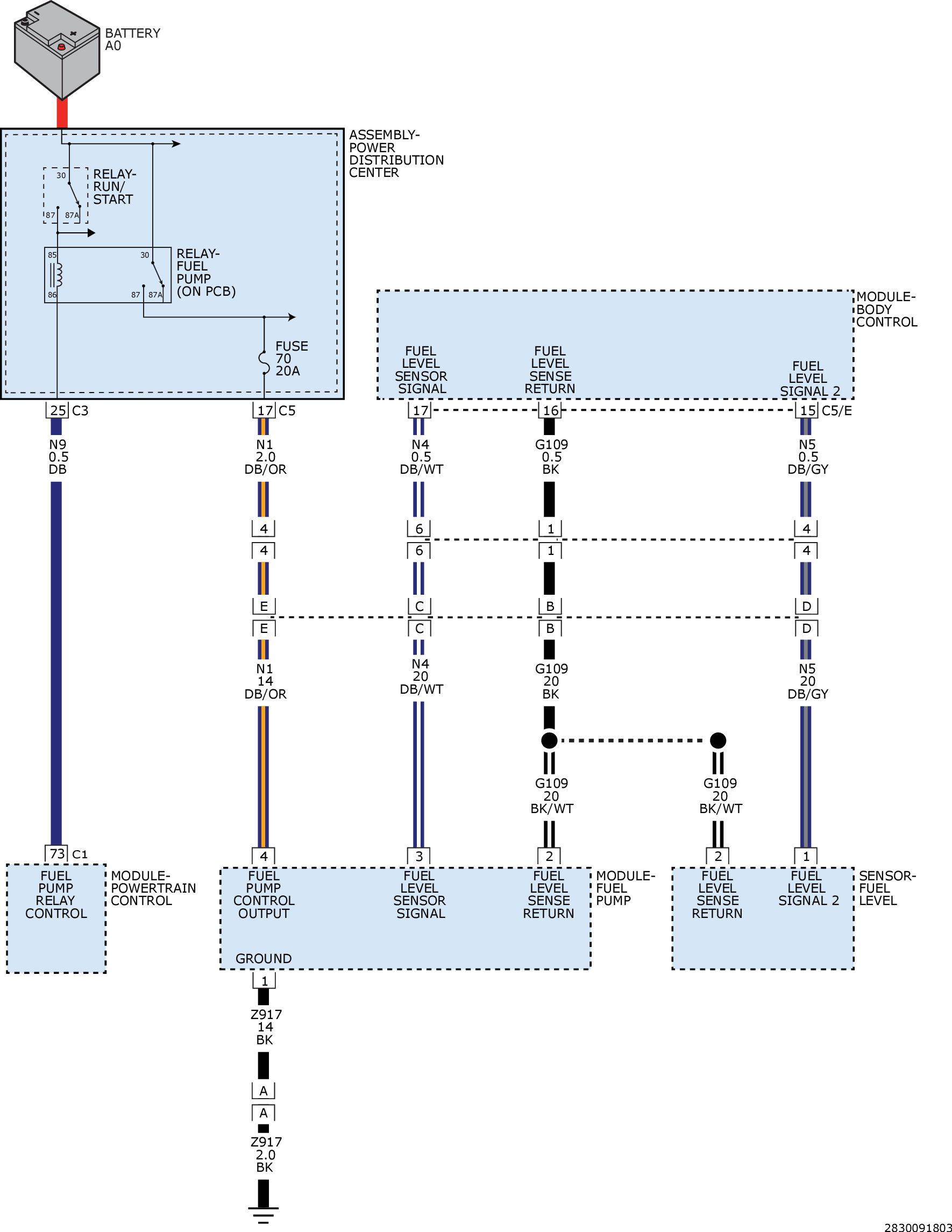

Fig 1: Fuel Level Sensor 1 Circuit Diagram
GC0174762Courtesy of CHRYSLER GROUP, LLC
