Charging System (Service Information): Generator: Installation: 5.7L

Fig 1: Remove / Install Generator - 5.7L

Courtesy of CHRYSLER GROUP, LLC

Position the generator (2) to the engine and install the two mounting bolts (1).
Torque the bolts to 41 N.m (30 ft. lbs.).
Snap the field wire connector (3) into the rear of the generator.
Install the B+ terminal eyelet to the generator output stud.
Tighten the mounting nut to 12 N.m (108 in. lbs.).

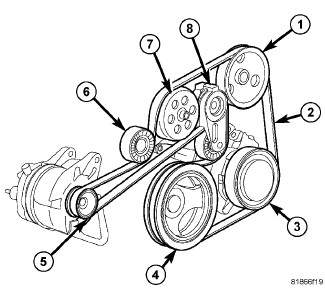

Fig 2: Accessory Drive Belt, Tensioner & Pulleys
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.

CAUTION:
When installing a serpentine accessory drive belt, the belt must be routed correctly. The water pump may be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat. Refer to belt routing label in engine compartment, or refer to the ACCESSORY DRIVE .
Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION BODY, AIR CLEANER, INSTALLATION, 5.7L .
Install the negative battery cable.
