P0703-Brake Switch 2 Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

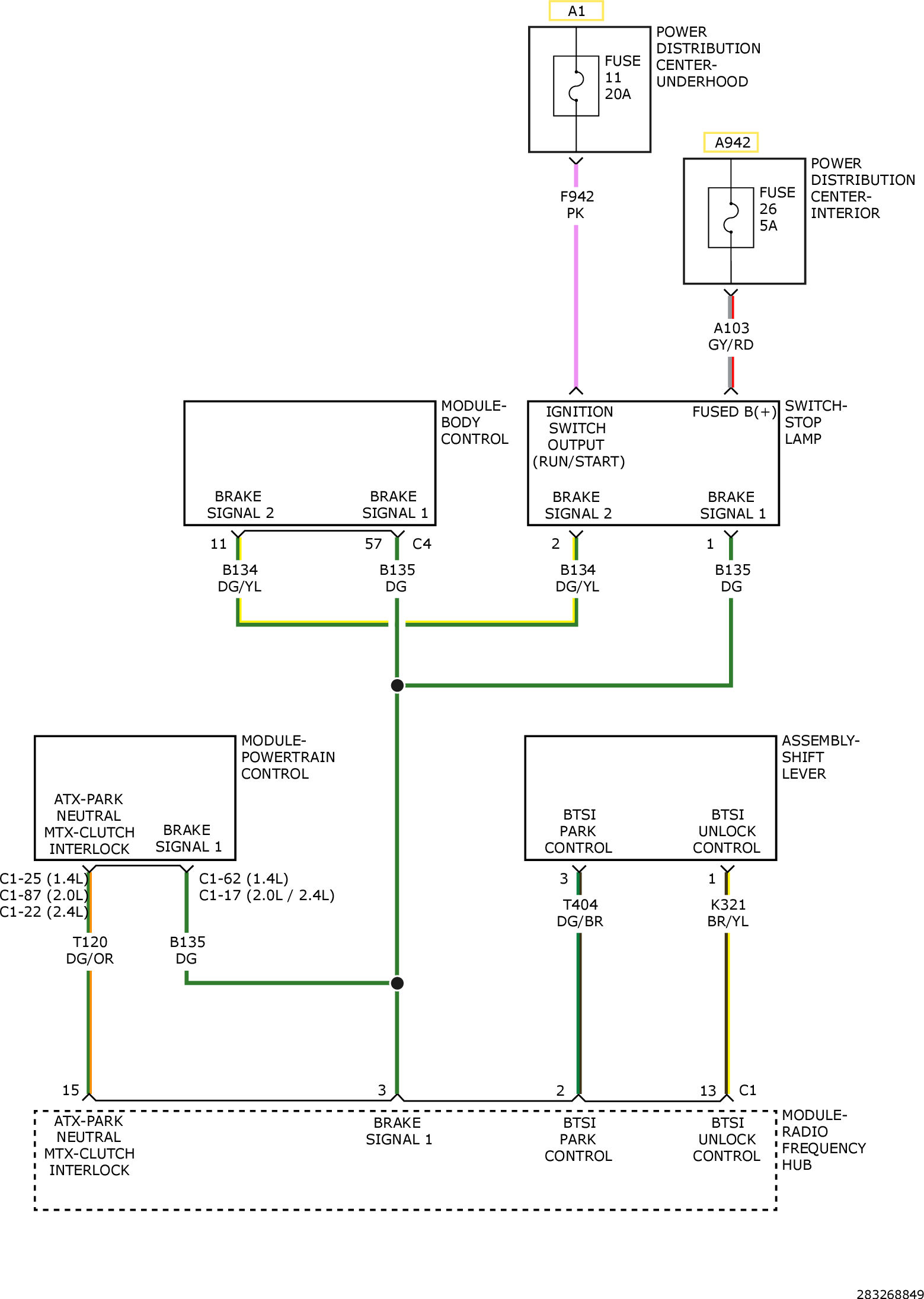

Fig 1: Brake Transmission Safety Interlock (BTSI) Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
