P0645-A/C Control Circuit/Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

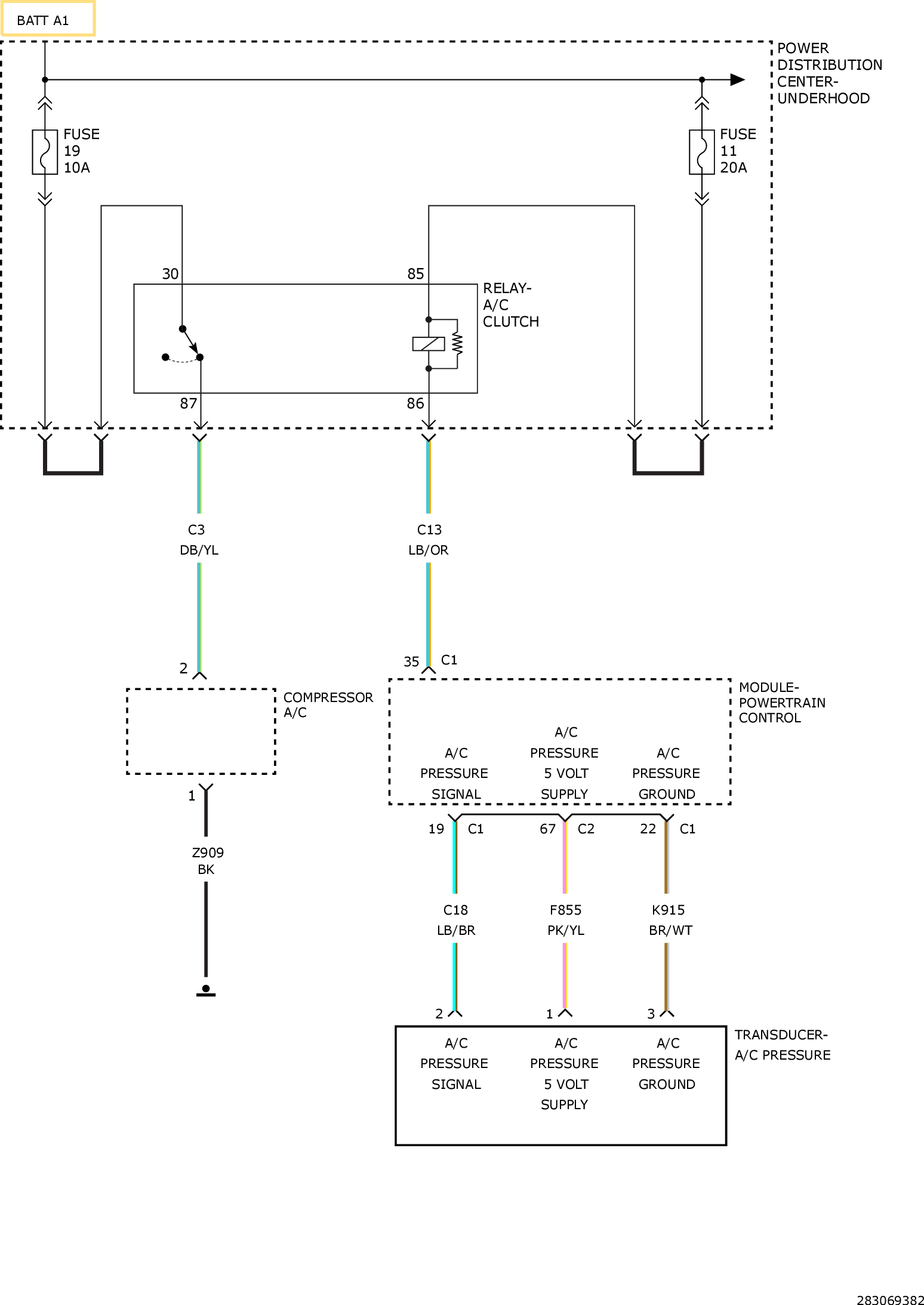

Fig 1: A/C Pressure Transducer Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
