Fuel Pump Connector Replacement (08-152-23)

Publication date: 2023-06-23
Reference number: 08-152-23
Supersedes refnos: 08-032-17

FUEL PUMP CONNECTOR REPLACEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): 08-152-23, Date of Issue: June 23, 2023

CHRYSLER:	2010 - 2016 (LX) Chrysler 300; 2011 - 2016 (LD) Dodge Charger; 2015 - 2016 (LA) Dodge Challenger; 2010 - 2014 (LC) Dodge Challenger
GROUP:	08 - Electrical

Superceded Bulletin(s): 08-032-17, Date of Issue: April 11, 2017

VEHICLES AFFECTED

**2010** - 2016 (LX) Chrysler 300

2011 - 2016 (LD) Dodge Charger

2015 - 2016 (LA) Dodge Challenger

**2010** - 2014 (LC) Dodge Challenger

CUSTOMER SYMPTOM

The technician may experience a crank/no start after the fuel pump module was replaced.

CAUSE

Updated fuel pump and connector

NOTE: This bulletin supersedes Technical Service Bulletin (TSB) 08-032-17, date of issue April 11, 2017, which should be removed from your files. All revisions are highlighted with **asterisks** and include additional model years, updated photos and call-outs.

REPAIR SUMMARY

This bulletin involves replacing the fuel pump connector harness (pigtail) when replacing the fuel pump module.

Old Fuel Pump	Kit Part Numbers	New Fuel Pump Kit Part Numbers
05136022AI		05136022AJ
68102700AB		68102700AC
68103913AC		68103913AD
68145815AB		68145815AC

DISCUSSION

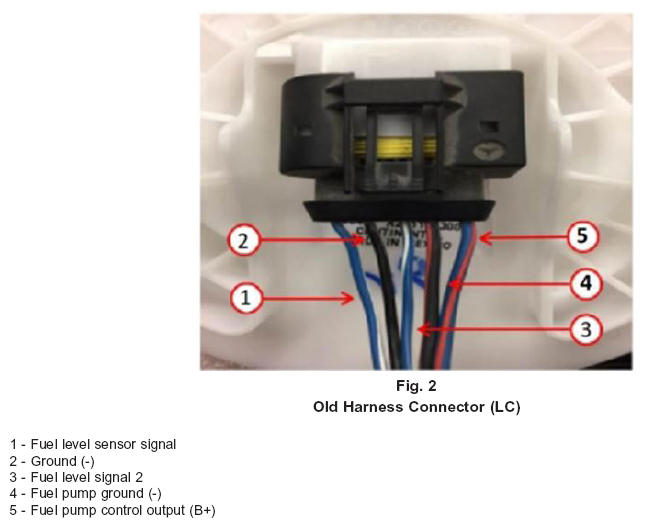

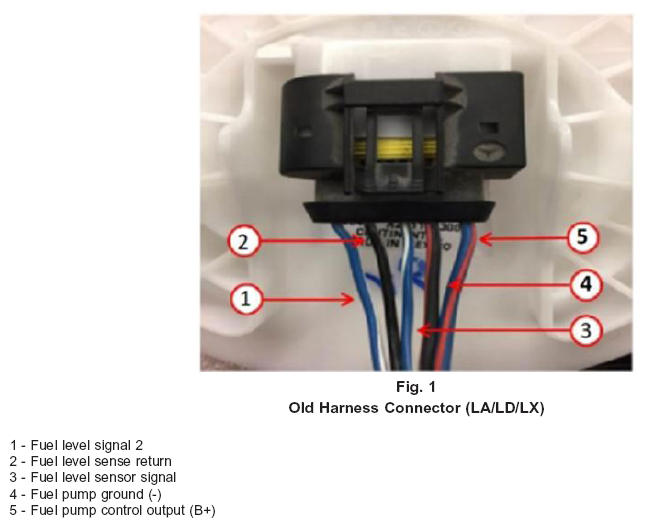

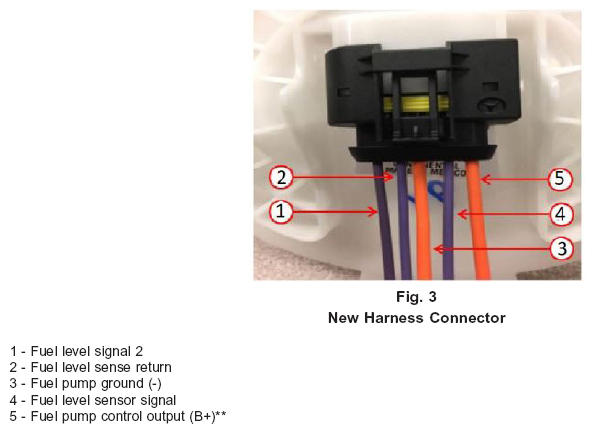

When replacing the fuel pump module for any reason, the revised fuel pump kit will come with an updated harness connector. The harness connector MUST be replaced, even if there are no issues with the old connector. The new pump has the electrical terminals (pins) in different locations, as shown in (**Fig. 1) , (Fig. 2) and (Fig. 3) .

The new fuel pump module kit comes with an instruction sheet (K6855971), showing how to install the new connector.

POLICY

Reimbursable within the provisions of the warranty.

This bulletin is supplied as technical information only and is not an authorization for repair. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise, without written permission of FCA US LLC.
