Turning Loop, Seat Belt: Installation: Installation
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar® Parts Catalog.

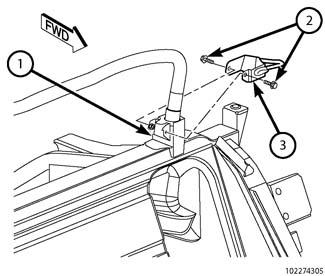

- Position the turning loop (3) onto the sport bar hoop receiver (1) on the frame cross member at the top of the bulkhead.
- Install and tighten the two screws (2) that secure the turning loop to the receiver. Tighten the screws to 20 N.m (15 ft. lbs.).
- Engage the seat belt webbing onto the turning loop. Be certain the belt webbing is not twisted between the turning loop and the retractor.
