Sensor, Knock: Installation: Installation

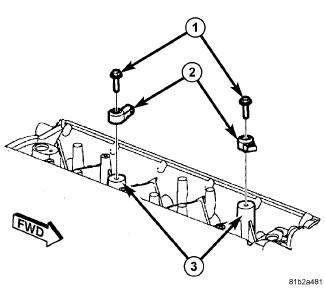

Fig 1: Identifying Knock Sensors

Courtesy of CHRYSLER GROUP, LLC

1. Install the knock sensors (2) to the engine block (3).
2. Install the knock sensor bolts (1) and tighten bolts to 20 N.m (15 ft. lbs.).
   Fig 2: Identifying Sensor Electrical Connectors

   Courtesy of CHRYSLER GROUP, LLC
3. Connect the knock sensor electrical connectors (3) and (4).
4. Install the intake manifold. Refer to MANIFOLD, INTAKE, INSTALLATION .
   Fig 3: Identifying IBS, Electrical Connector, (-) Battery Post, Cable Nut & Cable

   Courtesy of CHRYSLER GROUP, LLC
5. Connect the battery negative cable (4).
